10HP Electric Outboard Motor
- tenders
- inflatable rib boats
- plastic hull
- tinnies
- Forward shift lever
- Throttle grip mounted stop button
- Twist grip throttle
- Safety switch and lanyard included

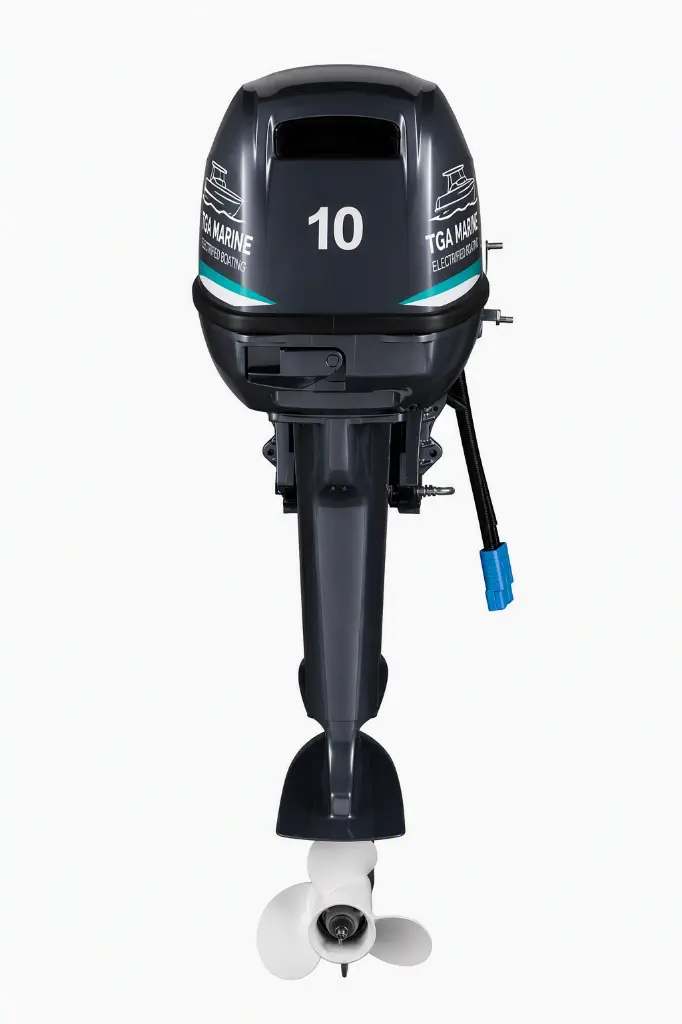

This is a 10HP electric outboard motor. The maximum power is 7.3KW and the rated voltage is 72V. Electric outboards use no fuel, which enables them to be more quiet and environmentally friendly compared to petrol models. We also use permanent-magnet synchronous motor which leads to lower noise, longer lifespan, higher efficiency, and low maintenance costs.
Applicable Ship Type
The electric 10 horsepower outboard motor is suitable for small vessels of different materials, such as inflatable boats, wooden boats, FRP boats, plastic boats and so on, ranging from 3.0 to 6.0m.
Recommended Battery
72V 60AH or 72V 105AH lithium-ion battery packs can be used for this model, or you can also use other brands of lithium batteries, or other types of batteries, such as lead-acid batteries, AGM batteries, etc.
Optional Models
Tiller control, short shaft E10TS
Tiller control, long shaft E10TL
Remote control, short shaft E10FS
Remote control, long shaft E10FL
PRODUCT SPECIFICATIONS
Product Model | E10 |
Rated Power | 7.3KW |
Rated Voltage | 72V |
Motor Type | Permanent Magnet Synchronous Motor |
Sensor Type | Magetic Encoder |
Steering System | Tiller/Remote Control |
Maximum Speed | 4200r/min |
Gear Ratio | 2.08 |
Weight(KG) | S: 37.5Kg L: 39Kg |
Cooling System | Water-cooled |
Gear Position | Forward-Neutral-Reverse |
PERFORMANCE DATA
| Power（W) | Speed(Km/h) | Runtime(min) | Range(Km) |
| 7350 | 24 | 69 | 27.6 |
| 6350 | 22 | 84 | 30.8 |
| 4830 | 20 | 111 | 37 |
| 4175 | 18 | 130 | 39 |
| 3765 | 15 | 160 | 42 |
| 2270 | 10 | 240 | 45 |
| 1140 | 7 | 480 | 56 |
| 760 | 6 | 720 | 72 |
| 380 | 5 | 1440 | 120 |
*Performance data is based on a 4.3-meter rubber boat, an adult and a 72V 120Ah lithium iron phosphate battery, tested in calm lake water. Actual speeds, ranges and operating times will vary depending on vessel, load, weather, etc.
-
Shaft Length
-
Control Type
